SQL手册
1. 元数据操作
1.1 数据库管理
创建数据库
CREATE DATABASE root.ln
查看数据库
show databases
show databases root.*
show databases root.**
删除数据库
DELETE DATABASE root.ln
DELETE DATABASE root.sgcc
DELETE DATABASE root.**
统计数据库数量
count databases
count databases root.*
count databases root.sgcc.*
count databases root.sgcc
1.2 时间序列管理
创建时间序列
create timeseries root.ln.wf01.wt01.status with datatype=BOOLEAN
create timeseries root.ln.wf01.wt01.temperature with datatype=FLOAT
create timeseries root.ln.wf02.wt02.hardware with datatype=TEXT
create timeseries root.ln.wf02.wt02.status with datatype=BOOLEAN
create timeseries root.sgcc.wf03.wt01.status with datatype=BOOLEAN
create timeseries root.sgcc.wf03.wt01.temperature with datatype=FLOAT
简化版
create timeseries root.ln.wf01.wt01.status BOOLEAN
create timeseries root.ln.wf01.wt01.temperature FLOAT
create timeseries root.ln.wf02.wt02.hardware TEXT
create timeseries root.ln.wf02.wt02.status BOOLEAN
create timeseries root.sgcc.wf03.wt01.status BOOLEAN
create timeseries root.sgcc.wf03.wt01.temperature FLOAT
错误提示
create timeseries root.ln.wf02.wt02.status WITH DATATYPE=BOOLEAN
> error: encoding TS_2DIFF does not support BOOLEAN
创建对齐时间序列
CREATE ALIGNED TIMESERIES root.ln.wf01.GPS(latitude FLOAT, longitude FLOAT)
删除时间序列
delete timeseries root.ln.wf01.wt01.status
delete timeseries root.ln.wf01.wt01.temperature, root.ln.wf02.wt02.hardware
delete timeseries root.ln.wf02.*
drop timeseries root.ln.wf02.*
查看时间序列
SHOW TIMESERIES
SHOW TIMESERIES <Path>
SHOW TIMESERIES root.**
SHOW TIMESERIES root.ln.**
SHOW TIMESERIES root.ln.** limit 10 offset 10
SHOW TIMESERIES root.ln.** where timeseries contains 'wf01.wt'
SHOW TIMESERIES root.ln.** where dataType=FLOAT
SHOW TIMESERIES root.ln.** where time>=2017-01-01T00:00:00 and time<=2017-11-01T16:26:00;
SHOW LATEST TIMESERIES
统计时间序列数量
COUNT TIMESERIES root.**
COUNT TIMESERIES root.ln.**
COUNT TIMESERIES root.ln.*.*.status
COUNT TIMESERIES root.ln.wf01.wt01.status
COUNT TIMESERIES root.** WHERE TIMESERIES contains 'sgcc'
COUNT TIMESERIES root.** WHERE DATATYPE = INT64
COUNT TIMESERIES root.** WHERE TAGS(unit) contains 'c'
COUNT TIMESERIES root.** WHERE TAGS(unit) = 'c'
COUNT TIMESERIES root.** WHERE TIMESERIES contains 'sgcc' group by level = 1
COUNT TIMESERIES root.** WHERE time>=2017-01-01T00:00:00 and time<=2017-11-01T16:26:00;
COUNT TIMESERIES root.** GROUP BY LEVEL=1
COUNT TIMESERIES root.ln.** GROUP BY LEVEL=2
COUNT TIMESERIES root.ln.wf01.* GROUP BY LEVEL=2
标签点管理
create timeseries root.turbine.d1.s1(temprature) with datatype=FLOAT tags(tag1=v1, tag2=v2) attributes(attr1=v1, attr2=v2)
重命名标签或属性
ALTER timeseries root.turbine.d1.s1 RENAME tag1 TO newTag1
重新设置标签或属性的值
ALTER timeseries root.turbine.d1.s1 SET newTag1=newV1, attr1=newV1
删除已经存在的标签或属性
ALTER timeseries root.turbine.d1.s1 DROP tag1, tag2
添加新的标签
ALTER timeseries root.turbine.d1.s1 ADD TAGS tag3=v3, tag4=v4
添加新的属性
ALTER timeseries root.turbine.d1.s1 ADD ATTRIBUTES attr3=v3, attr4=v4
更新插入别名，标签和属性
ALTER timeseries root.turbine.d1.s1 UPSERT ALIAS=newAlias TAGS(tag2=newV2, tag3=v3) ATTRIBUTES(attr3=v3, attr4=v4)
使用标签作为过滤条件查询时间序列
SHOW TIMESERIES (<`PathPattern`>)? timeseriesWhereClause
返回给定路径的下的所有满足条件的时间序列信息：
ALTER timeseries root.ln.wf02.wt02.hardware ADD TAGS unit=c
ALTER timeseries root.ln.wf02.wt02.status ADD TAGS description=test1
show timeseries root.ln.** where TAGS(unit)='c'
show timeseries root.ln.** where TAGS(description) contains 'test1'
使用标签作为过滤条件统计时间序列数量
COUNT TIMESERIES (<`PathPattern`>)? timeseriesWhereClause
COUNT TIMESERIES (<`PathPattern`>)? timeseriesWhereClause GROUP BY LEVEL=<INTEGER>
返回给定路径的下的所有满足条件的时间序列的数量：
count timeseries
count timeseries root.** where TAGS(unit)='c'
count timeseries root.** where TAGS(unit)='c' group by level = 2
创建对齐时间序列：
create aligned timeseries root.sg1.d1(s1 INT32 tags(tag1=v1, tag2=v2) attributes(attr1=v1, attr2=v2), s2 DOUBLE tags(tag3=v3, tag4=v4) attributes(attr3=v3, attr4=v4))
支持查询：
show timeseries where TAGS(tag1)='v1'
1.3 时间序列路径管理
查看路径的所有子路径
SHOW CHILD PATHS pathPattern
-- 查询 root.ln 的下一层：show child paths root.ln
-- 查询形如 root.xx.xx.xx 的路径：show child paths root.*.*
查看路径的所有子节点
SHOW CHILD NODES pathPattern
-- 查询 root 的下一层：show child nodes root
-- 查询 root.ln 的下一层 ：show child nodes root.ln
查看设备
UDB-DS> show devices
UDB-DS> show devices root.ln.**
UDB-DS> show devices where time>=2017-01-01T00:00:00 and time<=2017-11-01T16:26:00;
查看设备及其 database 信息
UDB-DS> show devices with database
UDB-DS> show devices root.ln.** with database
统计节点数
UDB-DS > COUNT NODES root.** LEVEL=2
UDB-DS > COUNT NODES root.ln.** LEVEL=2
UDB-DS > COUNT NODES root.ln.wf01.* LEVEL=3
UDB-DS > COUNT NODES root.**.temperature LEVEL=3
统计设备数量
UDB-DS> count devices
UDB-DS> count devices root.ln.**
UDB-DS> count devices where time>=2017-01-01T00:00:00 and time<=2017-11-01T16:26:00;

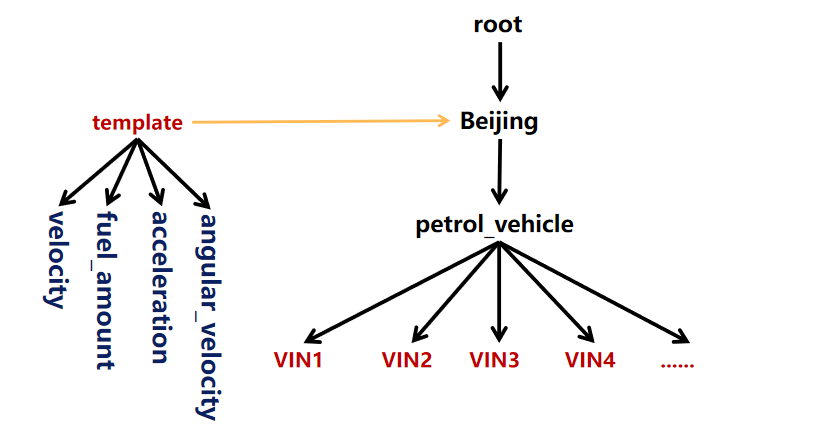

1.4 设备模板管理

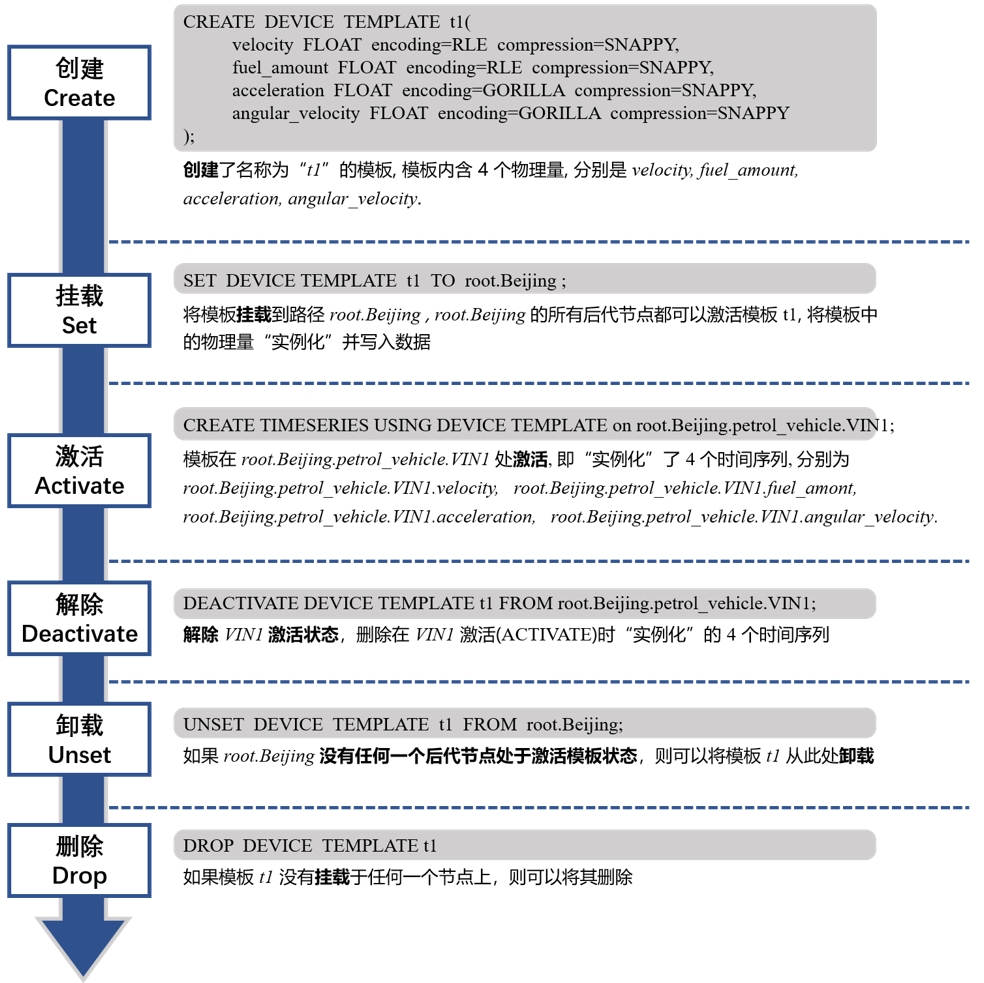

创建设备模板
CREATE DEVICE TEMPLATE <templateName> ALIGNED? '(' <measurementId> <attributeClauses> [',' <measurementId> <attributeClauses>]+ ')'
创建包含两个非对齐序列的设备模板
UDB-DS> create device template t1 (temperature FLOAT, status BOOLEAN)
创建包含一组对齐序列的设备模板
UDB-DS> create device template t2 aligned (lat FLOAT, lon FLOAT)
挂载设备模板
UDB-DS> set DEVICE TEMPLATE t1 to root.sg1
激活设备模板
UDB-DS> create timeseries using DEVICE TEMPLATE on root.sg1.d1
UDB-DS> set DEVICE TEMPLATE t1 to root.sg1.d1
UDB-DS> set DEVICE TEMPLATE t2 to root.sg1.d2
UDB-DS> create timeseries using device template on root.sg1.d1
UDB-DS> create timeseries using device template on root.sg1.d2
查看设备模板
UDB-DS> show device templates
查看某个设备模板下的物理量
UDB-DS> show nodes in device template t1
查看挂载了某个设备模板的路径
UDB-DS> show paths set device template t1
查看使用了某个设备模板的路径（即模板在该路径上已激活，序列已创建）
UDB-DS> show paths using device template t1
解除设备模板
UDB-DS> delete timeseries of device template t1 from root.sg1.d1
UDB-DS> deactivate device template t1 from root.sg1.d1
批量处理
UDB-DS> delete timeseries of device template t1 from root.sg1.*, root.sg2.*
UDB-DS> deactivate device template t1 from root.sg1.*, root.sg2.*
卸载设备模板
UDB-DS> unset device template t1 from root.sg1.d1
删除设备模板
UDB-DS> drop device template t1
1.5 数据存活时间管理
设置 TTL
UDB-DS> set ttl to root.ln 3600000
UDB-DS> set ttl to root.sgcc.** 3600000
UDB-DS> set ttl to root.** 3600000
取消 TTL
UDB-DS> unset ttl from root.ln
UDB-DS> unset ttl from root.sgcc.**
UDB-DS> unset ttl from root.**
显示 TTL
UDB-DS> SHOW ALL TTL
UDB-DS> SHOW TTL ON pathPattern
UDB-DS> show DEVICES
2. 写入数据
2.1 写入单列数据
UDB-DS > insert into root.ln.wf02.wt02(timestamp,status) values(1,true)
UDB-DS > insert into root.ln.wf02.wt02(timestamp,hardware) values(1, 'v1'),(2, 'v1')
2.2 写入多列数据
UDB-DS > insert into root.ln.wf02.wt02(timestamp, status, hardware) values (2, false, 'v2')
UDB-DS > insert into root.ln.wf02.wt02(timestamp, status, hardware) VALUES (3, false, 'v3'),(4, true, 'v4')
2.3 使用服务器时间戳
UDB-DS > insert into root.ln.wf02.wt02(status, hardware) values (false, 'v2')
2.4 写入对齐时间序列数据
UDB-DS > create aligned timeseries root.sg1.d1(s1 INT32, s2 DOUBLE)
UDB-DS > insert into root.sg1.d1(timestamp, s1, s2) aligned values(1, 1, 1)
UDB-DS > insert into root.sg1.d1(timestamp, s1, s2) aligned values(2, 2, 2), (3, 3, 3)
UDB-DS > select * from root.sg1.d1
2.5 加载 TsFile 文件数据
load ‘<path/dir>’ [sglevel=int][onSuccess=delete/none]
通过指定文件路径(绝对路径)加载单 tsfile 文件
load '/Users/Desktop/data/1575028885956-101-0.tsfile'load '/Users/Desktop/data/1575028885956-101-0.tsfile' sglevel=1load '/Users/Desktop/data/1575028885956-101-0.tsfile' onSuccess=deleteload '/Users/Desktop/data/1575028885956-101-0.tsfile' sglevel=1 onSuccess=delete
通过指定文件夹路径(绝对路径)批量加载文件
load '/Users/Desktop/data'load '/Users/Desktop/data' sglevel=1load '/Users/Desktop/data' onSuccess=deleteload '/Users/Desktop/data' sglevel=1 onSuccess=delete
3. 删除数据
3.1 删除单列数据
delete from root.ln.wf02.wt02.status where time<=2017-11-01T16:26:00;
delete from root.ln.wf02.wt02.status where time>=2017-01-01T00:00:00 and time<=2017-11-01T16:26:00;
delete from root.ln.wf02.wt02.status where time < 10
delete from root.ln.wf02.wt02.status where time <= 10
delete from root.ln.wf02.wt02.status where time < 20 and time > 10
delete from root.ln.wf02.wt02.status where time <= 20 and time >= 10
delete from root.ln.wf02.wt02.status where time > 20
delete from root.ln.wf02.wt02.status where time >= 20
delete from root.ln.wf02.wt02.status where time = 20
出错：
delete from root.ln.wf02.wt02.status where time > 4 or time < 0
Msg: 303: Check metadata error: For delete statement, where clause can only contain atomic
expressions like : time > XXX, time <= XXX, or two atomic expressions connected by 'AND'
删除时间序列中的所有数据：
delete from root.ln.wf02.wt02.status
3.2 删除多列数据
delete from root.ln.wf02.wt02.* where time <= 2017-11-01T16:26:00;
声明式的编程方式：
UDB-DS> delete from root.ln.wf03.wt02.status where time < now()
Msg: The statement is executed successfully.
4. 数据查询
4.1 基础查询
时间过滤查询
select temperature from root.ln.wf01.wt01 where time < 2017-11-01T00:08:00.000
根据一个时间区间选择多列数据
select status, temperature from root.ln.wf01.wt01 where time > 2017-11-01T00:05:00.000 and time < 2017-11-01T00:12:00.000;
按照多个时间区间选择同一设备的多列数据
select status, temperature from root.ln.wf01.wt01 where (time > 2017-11-01T00:05:00.000 and time < 2017-11-01T00:12:00.000) or (time >= 2017-11-01T16:35:00.000 and time <= 2017-11-01T16:37:00.000);
按照多个时间区间选择不同设备的多列数据
select wf01.wt01.status, wf02.wt02.hardware from root.ln where (time > 2017-11-01T00:05:00.000 and time < 2017-11-01T00:12:00.000) or (time >= 2017-11-01T16:35:00.000 and time <= 2017-11-01T16:37:00.000);
根据时间降序返回结果集
select * from root.ln.** where time > 1 order by time desc limit 10;
4.2 选择表达式
使用别名
select s1 as temperature, s2 as speed from root.ln.wf01.wt01;
运算符
函数
不支持：
select s1, count(s1) from root.sg.d1;
select sin(s1), count(s1) from root.sg.d1;
select s1, count(s1) from root.sg.d1 group by ([10,100),10ms);
时间序列查询嵌套表达式
示例 1：
select a, b, ((a + 1) * 2 - 1) % 2 + 1.5, sin(a + sin(a + sin(b))), (a + b) * (sin(a + b) * sin(a + b) + cos(a + b) * cos(a + b)) + 1 from root.sg1;
示例 2：
select (a + b) * 2 + sin(a) from root.sg
示例 3：
select (a + *) / 2 from root.sg1
示例 4：
select (a + b) * 3 from root.sg, root.ln
聚合查询嵌套表达式
示例 1：
select avg(temperature), sin(avg(temperature)),
avg(temperature) + 1, sum(hardware),
avg(temperature) + sum(hardware)
from root.ln.wf01.wt01;
示例 2：
select avg(temperature), (avg(temperature) + 1) * 3 / 2 -1 from root.sg1
示例 3：
select avg(temperature),
sin(avg(temperature)),
avg(temperature) + 1,
sum(hardware),
avg(temperature) + sum(hardware)
as custom_sum from root.ln.wf01.wt01 GROUP BY([10, 90), 10ms);
最新点查询
SQL 语法：
select last <Path> [COMMA <Path>]* from < PrefixPath > [COMMA < PrefixPath >]* <whereClause> [ORDER BY TIMESERIES (DESC | ASC)?]
查询 root.ln.wf01.wt01.status 的最新数据点
UDB-DS> select last status from root.ln.wf01.wt01
查询 root.ln.wf01.wt01 下 status，temperature 时间戳大于等于 2017-11-07T23:50:00 的最新数据点
UDB-DS> select last status, temperature from root.ln.wf01.wt01 where time >= 2017-11-07T23:50:00
查询 root.ln.wf01.wt01 下所有序列的最新数据点，并按照序列名降序排列
UDB-DS> select last * from root.ln.wf01.wt01 order by timeseries desc;
4.3 查询过滤条件
时间过滤条件
选择时间戳大于 2022-01-01T00:05:00.000 的数据：
select s1 from root.sg1.d1 where time > 2022-01-01T00:05:00.000;
选择时间戳等于 2022-01-01T00:05:00.000 的数据：
select s1 from root.sg1.d1 where time = 2022-01-01T00:05:00.000;
选择时间区间 [2017-11-01T00:05:00.000, 2017-11-01T00:12:00.000) 内的数据：
select s1 from root.sg1.d1 where time >= 2022-01-01T00:05:00.000 and time < 2017-11-01T00:12:00.000;
值过滤条件
选择值大于 36.5 的数据：
select temperature from root.sg1.d1 where temperature > 36.5;
选择值等于 true 的数据：
select status from root.sg1.d1 where status = true;
选择区间 [36.5,40] 内或之外的数据：
select temperature from root.sg1.d1 where temperature between 36.5 and 40;
select temperature from root.sg1.d1 where temperature not between 36.5 and 40;
选择值在特定范围内的数据：
select code from root.sg1.d1 where code in ('200', '300', '400', '500');
选择值在特定范围外的数据：
select code from root.sg1.d1 where code not in ('200', '300', '400', '500');
选择值为空的数据:
select code from root.sg1.d1 where temperature is null;
选择值为非空的数据:
select code from root.sg1.d1 where temperature is not null;
模糊查询
查询 root.sg.d1 下 value 含有'cc'的数据
UDB-DS> select * from root.sg.d1 where value like '%cc%'
查询 root.sg.d1 下 value 中间为 'b'、前后为任意单个字符的数据
UDB-DS> select * from root.sg.device where value like '_b_'
查询 root.sg.d1 下 value 值为26个英文字符组成的字符串
UDB-DS> select * from root.sg.d1 where value regexp '^[A-Za-z]+$'
查询 root.sg.d1 下 value 值为26个小写英文字符组成的字符串且时间大于100的
UDB-DS> select * from root.sg.d1 where value regexp '^[a-z]+$' and time > 100
4.4 分段分组聚合
未指定滑动步长的时间区间分组聚合查询
select count(status), max_value(temperature) from root.ln.wf01.wt01 group by ([2017-11-01T00:00:00, 2017-11-07T23:00:00),1d);
指定滑动步长的时间区间分组聚合查询
select count(status), max_value(temperature) from root.ln.wf01.wt01 group by ([2017-11-01 00:00:00, 2017-11-07 23:00:00), 3h, 1d);
滑动步长可以小于聚合窗口
select count(status), max_value(temperature) from root.ln.wf01.wt01 group by ([2017-11-01 00:00:00, 2017-11-01 10:00:00), 4h, 2h);
按照自然月份的时间区间分组聚合查询
select count(status) from root.ln.wf01.wt01 where time > 2017-11-01T01:00:00 group by([2017-11-01T00:00:00, 2019-11-07T23:00:00), 1mo, 2mo);
每个时间间隔窗口内都有数据
select count(status) from root.ln.wf01.wt01 group by([2017-10-31T00:00:00, 2019-11-07T23:00:00), 1mo, 2mo);
左开右闭区间
select count(status) from root.ln.wf01.wt01 group by ((2017-11-01T00:00:00, 2017-11-07T23:00:00],1d);
与分组聚合混合使用
统计降采样后的数据点个数
select count(status) from root.ln.wf01.wt01 group by ((2017-11-01T00:00:00, 2017-11-07T23:00:00],1d), level=1;
加上滑动 Step 的降采样后的结果也可以汇总
select count(status) from root.ln.wf01.wt01 group by ([2017-11-01 00:00:00, 2017-11-07 23:00:00), 3h, 1d), level=1;
路径层级分组聚合
统计不同 database 下 status 序列的数据点个数
select count(status) from root.** group by level = 1
统计不同设备下 status 序列的数据点个数
select count(status) from root.** group by level = 3
统计不同 database 下的不同设备中 status 序列的数据点个数
select count(status) from root.** group by level = 1, 3
查询所有序列下温度传感器 temperature 的最大值
select max_value(temperature) from root.** group by level = 0
查询某一层级下所有传感器拥有的总数据点数
select count(*) from root.ln.** group by level = 2
标签分组聚合
单标签聚合查询
SELECT AVG(temperature) FROM root.factory1.** GROUP BY TAGS(city);
多标签聚合查询
SELECT avg(temperature) FROM root.factory1.** GROUP BY TAGS(city, workshop);
基于时间区间的标签聚合查询
SELECT AVG(temperature) FROM root.factory1.** GROUP BY ([1000, 10000), 5s), TAGS(city, workshop);
差值分段聚合
group by variation(controlExpression[,delta][,ignoreNull=true/false])
delta=0时的等值事件分段
select __endTime, avg(s1), count(s2), sum(s3) from root.sg.d group by variation(s6)
指定ignoreNull为false
select __endTime, avg(s1), count(s2), sum(s3) from root.sg.d group by variation(s6, ignoreNull=false)
delta!=0时的差值事件分段
select __endTime, avg(s1), count(s2), sum(s3) from root.sg.d group by variation(s6, 4)
条件分段聚合
group by condition(predict,[keep>/>=/=/<=/<]threshold,[,ignoreNull=true/false])
查询至少连续两行以上的charging_status=1的数据
select max_time(charging_status),count(vehicle_status),last_value(soc) from root.** group by condition(charging_status=1,KEEP>=2,ignoreNull=true)
当设置ignoreNull为false时，遇到null值为将其视为一个不满足条件的行，得到结果原先的分组被含null的行拆分
select max_time(charging_status),count(vehicle_status),last_value(soc) from root.** group by condition(charging_status=1,KEEP>=2,ignoreNull=false)
会话分段聚合
group by session(timeInterval)
按照不同的时间单位设定时间间隔
select __endTime,count(*) from root.** group by session(1d)
和HAVING、ALIGN BY DEVICE共同使用
select __endTime,sum(hardware) from root.ln.wf02.wt01 group by session(50s) having sum(hardware)>0 align by device
点数分段聚合
group by count(controlExpression, size[,ignoreNull=true/false])
select count(charging_stauts), first_value(soc) from root.sg group by count(charging_status,5)
当使用ignoreNull将null值也考虑进来
select count(charging_stauts), first_value(soc) from root.sg group by count(charging_status,5,ignoreNull=false)
4.5 聚合结果过滤
不正确的：
select count(s1) from root.** group by ([1,3),1ms) having sum(s1) > s1
select count(s1) from root.** group by ([1,3),1ms) having s1 > 1
select count(s1) from root.** group by ([1,3),1ms), level=1 having sum(d1.s1) > 1
select count(d1.s1) from root.** group by ([1,3),1ms), level=1 having sum(s1) > 1
SQL 示例：
select count(s1) from root.** group by ([1,11),2ms), level=1 having count(s2) > 2;
select count(s1), count(s2) from root.** group by ([1,11),2ms) having count(s2) > 1 align by device;
4.6 结果集补空值
FILL '(' PREVIOUS | LINEAR | constant (, interval=DURATION_LITERAL)? ')'
PREVIOUS 填充
select temperature, status from root.sgcc.wf03.wt01 where time >= 2017-11-01T16:37:00.000 and time <= 2017-11-01T16:40:00.000 fill(previous);
PREVIOUS 填充并指定填充超时阈值
select temperature, status from root.sgcc.wf03.wt01 where time >= 2017-11-01T16:37:00.000 and time <= 2017-11-01T16:40:00.000 fill(previous, 2m);
LINEAR 填充
select temperature, status from root.sgcc.wf03.wt01 where time >= 2017-11-01T16:37:00.000 and time <= 2017-11-01T16:40:00.000 fill(linear);
常量填充
select temperature, status from root.sgcc.wf03.wt01 where time >= 2017-11-01T16:37:00.000 and time <= 2017-11-01T16:40:00.000 fill(2.0);
使用 BOOLEAN 类型的常量填充
select temperature, status from root.sgcc.wf03.wt01 where time >= 2017-11-01T16:37:00.000 and time <= 2017-11-01T16:40:00.000 fill(true);
4.7 查询结果分页
按行分页
基本的 LIMIT 子句
select status, temperature from root.ln.wf01.wt01 limit 10
带 OFFSET 的 LIMIT 子句
select status, temperature from root.ln.wf01.wt01 limit 5 offset 3
LIMIT 子句与 WHERE 子句结合
select status,temperature from root.ln.wf01.wt01 where time > 2017-11-01T00:05:00.000 and time< 2017-11-01T00:12:00.000 limit 5 offset 3
LIMIT 子句与 GROUP BY 子句组合
select count(status), max_value(temperature) from root.ln.wf01.wt01 group by ([2017-11-01T00:00:00, 2017-11-07T23:00:00),1d) limit 4 offset 3
按列分页
基本的 SLIMIT 子句
select * from root.ln.wf01.wt01 where time > 2017-11-01T00:05:00.000 and time < 2017-11-01T00:12:00.000 slimit 1
带 SOFFSET 的 SLIMIT 子句
select * from root.ln.wf01.wt01 where time > 2017-11-01T00:05:00.000 and time < 2017-11-01T00:12:00.000 slimit 1 soffset 1
SLIMIT 子句与 GROUP BY 子句结合
select max_value(*) from root.ln.wf01.wt01 group by ([2017-11-01T00:00:00, 2017-11-07T23:00:00),1d) slimit 1 soffset 1
SLIMIT 子句与 LIMIT 子句结合
select * from root.ln.wf01.wt01 limit 10 offset 100 slimit 2 soffset 0
4.8 排序
时间对齐模式下的排序
select * from root.ln.** where time <= 2017-11-01T00:01:00 order by time desc;
设备对齐模式下的排序
select * from root.ln.** where time <= 2017-11-01T00:01:00 order by device desc,time asc align by device;
在时间戳相等时按照设备名排序
select * from root.ln.** where time <= 2017-11-01T00:01:00 order by time asc,device desc align by device;
没有显式指定时
select * from root.ln.** where time <= 2017-11-01T00:01:00 align by device;
对聚合后的结果进行排序
select count(*) from root.ln.** group by ((2017-11-01T00:00:00.000+08:00,2017-11-01T00:03:00.000+08:00],1m) order by device asc,time asc align by device
4.9 查询对齐模式
按设备对齐
select * from root.ln.** where time <= 2017-11-01T00:01:00 align by device;
4.10 查询写回（SELECT INTO）
整体描述
selectIntoStatement
: SELECT
resultColumn [, resultColumn] ...
INTO intoItem [, intoItem] ...
FROM prefixPath [, prefixPath] ...
[WHERE whereCondition]
[GROUP BY groupByTimeClause, groupByLevelClause]
[FILL ({PREVIOUS | LINEAR | constant} (, interval=DURATION_LITERAL)?)]
[LIMIT rowLimit OFFSET rowOffset]
[ALIGN BY DEVICE];
intoItem
: [ALIGNED] intoDevicePath '(' intoMeasurementName [',' intoMeasurementName]* ')';
按时间对齐，将 root.sg database 下四条序列的查询结果写入到 root.sg_copy database 下指定的四条序列中
UDB-DS> select s1, s2 into root.sg_copy.d1(t1), root.sg_copy.d2(t1, t2), root.sg_copy.d1(t2) from root.sg.d1, root.sg.d2;
按时间对齐，将聚合查询的结果存储到指定序列中
UDB-DS> select count(s1 + s2), last_value(s2) into root.agg.count(s1_add_s2), root.agg.last_value(s2) from root.sg.d1 group by ([0, 100), 10ms);
按设备对齐
UDB-DS> select s1, s2 into root.sg_copy.d1(t1, t2), root.sg_copy.d2(t1, t2) from root.sg.d1, root.sg.d2 align by device;
按设备对齐，将表达式计算的结果存储到指定序列中
UDB-DS> select s1 + s2 into root.expr.add(d1s1_d1s2), root.expr.add(d2s1_d2s2) from root.sg.d1, root.sg.d2 align by device;
使用变量占位符
按时间对齐（默认）
目标设备不使用变量占位符 & 目标物理量列表使用变量占位符
select s1, s2
into root.sg_copy.d1(::), root.sg_copy.d2(s1), root.sg_copy.d1(${3}), root.sg_copy.d2(::)
from root.sg.d1, root.sg.d2;
该语句等价于：
select s1, s2
into root.sg_copy.d1(s1), root.sg_copy.d2(s1), root.sg_copy.d1(s2), root.sg_copy.d2(s2)
from root.sg.d1, root.sg.d2;
目标设备使用变量占位符 & 目标物理量列表不使用变量占位符
select d1.s1, d1.s2, d2.s3, d3.s4
into ::(s1_1, s2_2), root.sg.d2_2(s3_3), root.${2}_copy.::(s4)
from root.sg;
目标设备使用变量占位符 & 目标物理量列表使用变量占位符
select * into root.sg_bk.::(::) from root.sg.**;
按设备对齐（使用 ALIGN BY DEVICE）
目标设备不使用变量占位符 & 目标物理量列表使用变量占位符
select s1, s2, s3, s4
into root.backup_sg.d1(s1, s2, s3, s4), root.backup_sg.d2(::), root.sg.d3(backup_${4})
from root.sg.d1, root.sg.d2, root.sg.d3
align by device;
目标设备使用变量占位符 & 目标物理量列表不使用变量占位符
select avg(s1), sum(s2) + sum(s3), count(s4)
into root.agg_${2}.::(avg_s1, sum_s2_add_s3, count_s4)
from root.**
align by device;
目标设备使用变量占位符 & 目标物理量列表使用变量占位符
select * into ::(backup_${4}) from root.sg.** align by device;
指定目标序列为对齐序列
select s1, s2 into root.sg_copy.d1(t1, t2), aligned root.sg_copy.d2(t1, t2) from root.sg.d1, root.sg.d2 align by device;
5. 运维语句
生成对应的查询计划
explain select s1,s2 from root.sg.d1
执行对应的查询语句，并获取分析结果
explain analyze select s1,s2 from root.sg.d1 order by s1
6. 运算符
更多见文档函数与运算符
6.1 算数运算符
更多见文档 算数运算符
select s1, - s1, s2, + s2, s1 + s2, s1 - s2, s1 * s2, s1 / s2, s1 % s2 from root.sg.d1
6.2 比较运算符
更多见文档比较运算符
-- Basic comparison operators
select a, b, a > 10, a <= b, !(a <= b), a > 10 && a > b from root.test;
-- `BETWEEN ... AND ...` operator
select temperature from root.sg1.d1 where temperature between 36.5 and 40;
select temperature from root.sg1.d1 where temperature not between 36.5 and 40;
-- Fuzzy matching operator: Use `Like` for fuzzy matching
select * from root.sg.d1 where value like '%cc%'
select * from root.sg.device where value like '_b_'
-- Fuzzy matching operator: Use `Regexp` for fuzzy matching
select * from root.sg.d1 where value regexp '^[A-Za-z]+$'
select * from root.sg.d1 where value regexp '^[a-z]+$' and time > 100
select b, b like '1%', b regexp '[0-2]' from root.test;
-- `IS NULL` operator
select code from root.sg1.d1 where temperature is null;
select code from root.sg1.d1 where temperature is not null;
-- `IN` operator
select code from root.sg1.d1 where code in ('200', '300', '400', '500');
select code from root.sg1.d1 where code not in ('200', '300', '400', '500');
select a, a in (1, 2) from root.test;
6.3 逻辑运算符
更多见文档逻辑运算符
select a, b, a > 10, a <= b, !(a <= b), a > 10 && a > b from root.test;
7. 内置函数
更多见文档内置函数
7.1 聚合函数
更多见文档聚合函数
select count(status) from root.ln.wf01.wt01;
select count_if(s1=0 & s2=0, 3), count_if(s1=1 & s2=0, 3) from root.db.d1;
select count_if(s1=0 & s2=0, 3, 'ignoreNull'='false'), count_if(s1=1 & s2=0, 3, 'ignoreNull'='false') from root.db.d1;
select time_duration(s1) from root.db.d1;
7.2 算数函数
更多见文档数学函数
select s1, sin(s1), cos(s1), tan(s1) from root.sg1.d1 limit 5 offset 1000;
select s4,round(s4),round(s4,2),round(s4,-1) from root.sg1.d1;
7.3 比较函数
更多见文档比较函数
select ts, on_off(ts, 'threshold'='2') from root.test;
select ts, in_range(ts, 'lower'='2', 'upper'='3.1') from root.test;
7.4 字符串处理函数
更多见文档字符串函数
select s1, string_contains(s1, 's'='warn') from root.sg1.d4;
select s1, string_matches(s1, 'regex'='[^\\s]+37229') from root.sg1.d4;
select s1, length(s1) from root.sg1.d1
select s1, locate(s1, "target"="1") from root.sg1.d1
select s1, locate(s1, "target"="1", "reverse"="true") from root.sg1.d1
select s1, startswith(s1, "target"="1") from root.sg1.d1
select s1, endswith(s1, "target"="1") from root.sg1.d1
select s1, s2, concat(s1, s2, "target1"="UDB", "target2"="DS") from root.sg1.d1
select s1, s2, concat(s1, s2, "target1"="UDB", "target2"="DS", "series_behind"="true") from root.sg1.d1
select s1, substring(s1 from 1 for 2) from root.sg1.d1
select s1, replace(s1, 'es', 'tt') from root.sg1.d1
select s1, upper(s1) from root.sg1.d1
select s1, lower(s1) from root.sg1.d1
select s3, trim(s3) from root.sg1.d1
select s1, s2, strcmp(s1, s2) from root.sg1.d1
select strreplace(s1, "target"=",", "replace"="/", "limit"="2") from root.test.d1
select strreplace(s1, "target"=",", "replace"="/", "limit"="1", "offset"="1", "reverse"="true") from root.test.d1
select regexmatch(s1, "regex"="\d+\.\d+\.\d+\.\d+", "group"="0") from root.test.d1
select regexreplace(s1, "regex"="192\.168\.0\.(\d+)", "replace"="cluster-$1", "limit"="1") from root.test.d1
select regexsplit(s1, "regex"=",", "index"="-1") from root.test.d1
select regexsplit(s1, "regex"=",", "index"="3") from root.test.d1
7.5 数据类型转换函数
更多见文档数据类型转换函数
SELECT cast(s1 as INT32) from root.sg
7.6 常序列生成函数
更多见文档常序列生成函数
select s1, s2, const(s1, 'value'='1024', 'type'='INT64'), pi(s2), e(s1, s2) from root.sg1.d1;
7.7 选择函数
更多见文档选择函数
select s1, top_k(s1, 'k'='2'), bottom_k(s1, 'k'='2') from root.sg1.d2 where time > 2020-12-10T20:36:15.530+08:00;
7.8 区间查询函数
更多见文档区间查询函数
select s1, zero_count(s1), non_zero_count(s2), zero_duration(s3), non_zero_duration(s4) from root.sg.d2;
7.9 趋势计算函数
更多见文档趋势计算函数
select s1, time_difference(s1), difference(s1), non_negative_difference(s1), derivative(s1), non_negative_derivative(s1) from root.sg1.d1 limit 5 offset 1000;
SELECT DIFF(s1), DIFF(s2) from root.test;
SELECT DIFF(s1, 'ignoreNull'='false'), DIFF(s2, 'ignoreNull'='false') from root.test;
7.10 采样函数
更多见文档采样函数。
select equal_size_bucket_random_sample(temperature,'proportion'='0.1') as random_sample from root.ln.wf01.wt01;
select equal_size_bucket_agg_sample(temperature, 'type'='avg','proportion'='0.1') as agg_avg, equal_size_bucket_agg_sample(temperature, 'type'='max','proportion'='0.1') as agg_max, equal_size_bucket_agg_sample(temperature,'type'='min','proportion'='0.1') as agg_min, equal_size_bucket_agg_sample(temperature, 'type'='sum','proportion'='0.1') as agg_sum, equal_size_bucket_agg_sample(temperature, 'type'='extreme','proportion'='0.1') as agg_extreme, equal_size_bucket_agg_sample(temperature, 'type'='variance','proportion'='0.1') as agg_variance from root.ln.wf01.wt01;
select equal_size_bucket_m4_sample(temperature, 'proportion'='0.1') as M4_sample from root.ln.wf01.wt01;
select equal_size_bucket_outlier_sample(temperature, 'proportion'='0.1', 'type'='avg', 'number'='2') as outlier_avg_sample, equal_size_bucket_outlier_sample(temperature, 'proportion'='0.1', 'type'='stendis', 'number'='2') as outlier_stendis_sample, equal_size_bucket_outlier_sample(temperature, 'proportion'='0.1', 'type'='cos', 'number'='2') as outlier_cos_sample, equal_size_bucket_outlier_sample(temperature, 'proportion'='0.1', 'type'='prenextdis', 'number'='2') as outlier_prenextdis_sample from root.ln.wf01.wt01;
select M4(s1,'timeInterval'='25','displayWindowBegin'='0','displayWindowEnd'='100') from root.vehicle.d1
select M4(s1,'windowSize'='10') from root.vehicle.d1
7.11 时间序列处理函数
更多见文档Time-Series
select change_points(s1), change_points(s2), change_points(s3), change_points(s4), change_points(s5), change_points(s6) from root.testChangePoints.d1
8. 条件表达式
更多见文档条件表达式
select T, P, case when 1000<T and T<1050 and 1000000<P and P<1100000
then "good!" when T<=1000 or T>=1050
then "bad temperature" when P<=1000000 or P>=1100000
then "bad pressure" end as `result`
from root.test1;
select str, case when str like "%cc%" then "has cc" when str like "%dd%"
then "has dd" else "no cc and dd" end as `result` from root.test2;
select count(case when x<=1 then 1 end) as `(-∞,1]`,
count(case when 1<x and x<=3 then 1 end) as `(1,3]`,
count(case when 3<x and x<=7 then 1 end) as `(3,7]`,
count(case when 7<x then 1 end) as `(7,+∞)`
from root.test3;
select x, case x when 1 then "one" when 2 then "two" else "other" end from root.test4;
select x, case x when 1 then true when 2 then false end as `result` from root.test4;
select x, case x when 1 then 1 when 2 then 222222222222222 when 3 then 3.3 when 4 then 4.4444444444444 end as `result` from root.test4;
9. 权限管理
9.1 用户与角色相关
创建用户(需 MANAGE_USER 权限)
CREATE USER <userName> <password>
eg: CREATE USER user1 'passwd'
删除用户 (需 MANEGE_USER 权限)
DROP USER <userName>
eg: DROP USER user1
创建角色 (需 MANAGE_ROLE 权限)
CREATE ROLE <roleName>
eg: CREATE ROLE role1
删除角色 (需 MANAGE_ROLE 权限)
DROP ROLE <roleName>
eg: DROP ROLE role1
赋予用户角色 (需 MANAGE_ROLE 权限)
GRANT ROLE <ROLENAME> TO <USERNAME>
eg: GRANT ROLE admin TO user1
移除用户角色 (需 MANAGE_ROLE 权限)
REVOKE ROLE <ROLENAME> FROM <USER>
eg: REVOKE ROLE admin FROM user1
列出所有用户 (需 MANEGE_USER 权限)
LIST USER
列出所有角色 (需 MANAGE_ROLE 权限)
LIST ROLE
列出指定角色下所有用户 (需 MANEGE_USER 权限)
LIST USER OF ROLE <roleName>
eg: LIST USER OF ROLE roleuser
列出指定用户下所有角色
用户可以列出自己的角色，但列出其他用户的角色需要拥有 MANAGE_ROLE 权限。
LIST ROLE OF USER <username>
eg: LIST ROLE OF USER tempuser
列出用户所有权限
用户可以列出自己的权限信息，但列出其他用户的权限需要拥有 MANAGE_USER 权限。
LIST PRIVILEGES OF USER <username>;
eg: LIST PRIVILEGES OF USER tempuser;
列出角色所有权限
用户可以列出自己具有的角色的权限信息，列出其他角色的权限需要有 MANAGE_ROLE 权限。
LIST PRIVILEGES OF ROLE <roleName>;
eg: LIST PRIVILEGES OF ROLE actor;
修改密码
用户可以修改自己的密码，但修改其他用户密码需要具备MANAGE_USER 权限。
ALTER USER <username> SET PASSWORD <password>;
eg: ALTER USER tempuser SET PASSWORD 'newpwd';
9.2 授权与取消授权
用户使用授权语句对赋予其他用户权限，语法如下：
GRANT <PRIVILEGES> ON <PATHS> TO ROLE/USER <NAME> [WITH GRANT OPTION];
eg: GRANT READ ON root.** TO ROLE role1;
eg: GRANT READ_DATA, WRITE_DATA ON root.t1.** TO USER user1;
eg: GRANT READ_DATA, WRITE_DATA ON root.t1.**,root.t2.** TO USER user1;
eg: GRANT MANAGE_ROLE ON root.** TO USER user1 WITH GRANT OPTION;
eg: GRANT ALL ON root.** TO USER user1 WITH GRANT OPTION;
用户使用取消授权语句可以将其他的权限取消，语法如下：
REVOKE <PRIVILEGES> ON <PATHS> FROM ROLE/USER <NAME>;
eg: REVOKE READ ON root.** FROM ROLE role1;
eg: REVOKE READ_DATA, WRITE_DATA ON root.t1.** FROM USER user1;
eg: REVOKE READ_DATA, WRITE_DATA ON root.t1.**, root.t2.** FROM USER user1;
eg: REVOKE MANAGE_ROLE ON root.** FROM USER user1;
eg: REVOKE ALL ON ROOT.** FROM USER user1;
